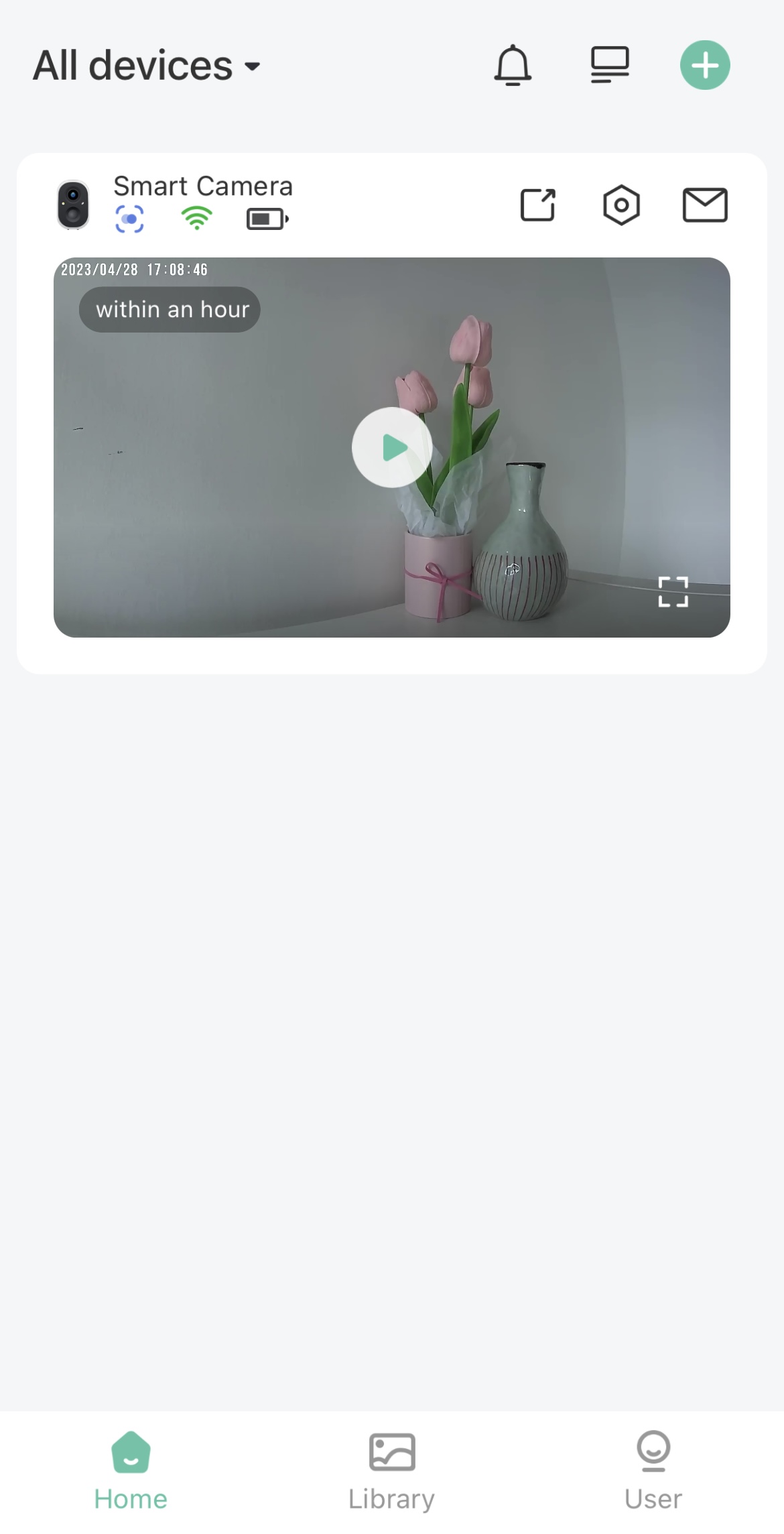

If you have successfully connected the camera, you will see the live thumbnail of the camera on the homepage of the APP.
-
Motion detection icon
If motion detection is enabled on your camera, you will see this icon. You can tap the camera "setting" icon -> tap "Motion Detection" to view or manage the settings for motion detection.
-
WiFi icon
Wi-Fi Strength indicates the Wi-Fi signal strength received by the camera. There are three levels:
Green: Strong
Yellow: Medium
Red: Weak
If the WiFi strength is weak, please try to take your camera as close to your wifi router as possible.
- Battery icon
If this icon is green, it means that the camera is charging. If not, it means that the camera is not charging.
If this icon is red, it means the camera is in low-power mode. Please charge the camera in time to ensure that the camera can work normally.
-
Share icon
To share camera access, the camera administrator can simply tap the "Share" icon. Following this, select the "Camera Sharing" button to generate a unique QR code for the camera to be shared.
-
Settings icon
You can tap the Settings icon if you want to check the camera information or update the camera settings.
-
Envelope icon
You can tap the envelope icon to view the recordings of the corresponding camera. The accompanying number indicates the count of unviewed videos for the day.
-
Play icon
You can tap the play icon on the homepage to watch the live view.
-
Full-screen icon
If you want to get the landscape image/full-screen live view on the phone, you can tap this icon to view the stream on full screen.
If you are viewing the live stream of the camera, you can see the page below:
-
Live icon
If you are able to see this icon, it indicates that you are currently accessing the camera's live stream.
-
Stop playing icon
The live stream of the camera will stop if you tap the stop playing icon.
-
Sound icon
By default, the speaker is muted. To enable audio output from the camera, kindly tap on the "Sound" icon.
-
Audible alarm icon
When you turn the Audible Alarm on, the camera will sound an alarm.
-
White light icon
If you activate the "White Light" feature, the white spotlight will be illuminated. Please note that this feature is only supported by select models.
-
Press to speak icon
To utilize the two-way talk function, simply press and hold this icon. When the audio bar begins to fluctuate, this signifies that your voice is being transmitted to the camera.
-
Motion Tracking icon
Once Motion Tracking is on, the camera will automatically follow the recording after detecting any movement. Please note that this feature is only supported by certain models.
-
PTZ Control Panel
While live streaming, you'll notice the "PTZ Control Panel" on your screen. These enable you to manipulate the camera's direction - up, down, left, or right. Utilize these controls to fine-tune your camera's focus, ensuring the area you wish to monitor is within view. Please note that this feature is only supported by certain models.
-
Position icon
This feature lets you save and instantly access your frequently viewed camera angles. Simply tap the "Position" icon, and your camera will auto-rotate to your preselected view. Keep in mind, if the camera's location changes, preset positions might not correspond accurately. Also, please note that this feature is only supported by certain models.
How to set a preset position:
-
Start by adjusting the camera angle using the "PTZ Control panel" to achieve your desired view.
-
Proceed to tap the "Position" icon, followed by the "+" button, to create a new position and provide a name for it. You can establish up to 5 positions. If there's a need to remove an existing position, simply tap the "Trash Can" icon.
-
To exit the "Position" settings page at any time, just click the "X" button.

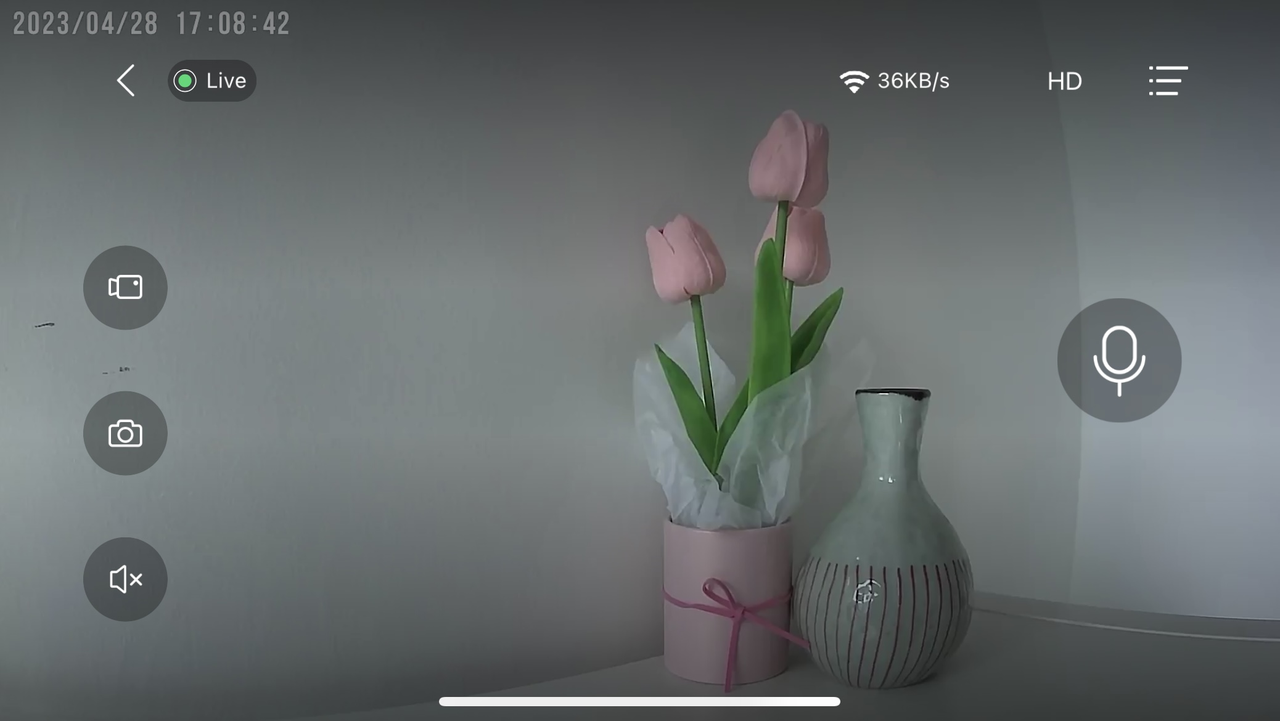

If you are viewing the camera's full-screen live stream, you can see the page below:
-
Manual screen recording icon
When in live view, the camera will not detect motions (record videos and send notifications).
If you still want to save some important content, you can tap the "Manual Screen Recording Icon" to record a video.
-
Manual screenshot icon
You can tap the "manual screenshot icon" to save the desired image.
-
Sound icon
By default, the speaker is muted. To enable audio output from the camera, kindly tap on the "Sound" icon.
-
Press to speak icon
To utilize the two-way talk function, simply press and hold this icon. When the audio bar begins to fluctuate, this signifies that your voice is being transmitted to the camera.
-
Live resolution icon（SD, Auto and HD/2k）
You can adjust the resolution of the live screen by tapping the "Live resolution icon". Only some models would support 2k resolution.
